 08 Channel Analog Input Module

Item No:
S73008C00CV01G08GIND

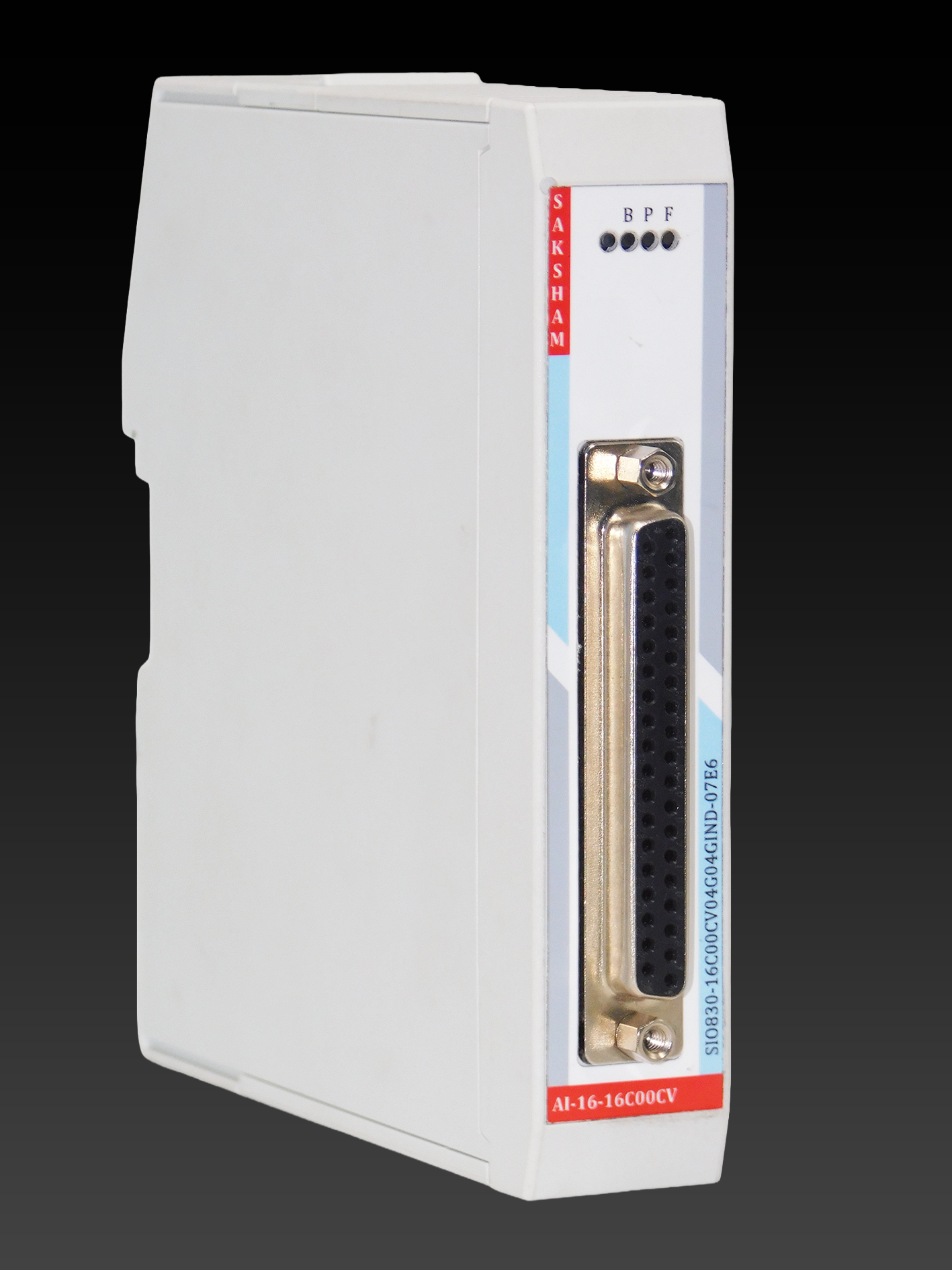

08 Channel Analog Input Module

TPW Saksham PLC Large View
TPW Saksham PLC Thumbnail 1 TPW Saksham PLC Thumbnail 2 TPW Saksham PLC Thumbnail 3
No. of Analog Input
08 Channels
Type Of Analog Input
08 Channels 0-20mA
Hardware Functional Status
From Jul22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
Codesys V3 5 Sp 19 And Above
Mounting
Base Unit Tbus Pppppppp
Galvanic Isolation
Yes
Galvanic Isolation Group
01
Channel In Group
08
Power Supply From
Top Side De Coded Plug In Screw Terminal
Normal Supply Voltage
24 Vdc
Low Supply Voltage
18.5 Vdc
High Sypply Voltage
28.5
Reverse Polarity Protection
Yes
Input Current
0.4 AMP
Input Current Per Channel Permissible
21.5 mA
Transmitter Power
Yes
Power Loss
0.245 W
Input Range
0-20 mA
Input Range
4-20 mA
Measuring Range
Scalable
Input Resistance
120 Ω
Perameterization In Run
Yes
Calibration In Run
Yes
Automatic Encoding
No
Mechanical Coding Element
Yes
Analog Input Measuring Principal
Sigma Delta Integrating
Resolution With Over Range Max
12 Bit
Conversion Time Per Chennal
100 Ms
Linearity Error
0.1% (Input Range)
Operational Error
0.5% (Input Range)
Basic Errer
0.3% (Input Range)
Series Mode Interference
Min 70dB
Common Mode Voltage
Max 10 V
Common Mode Interference
90 dB
Dignotics Alarm
Yes
Limit Alarm
Yes
Function Of Diagnostic
Available
Wire-Break
Yes(4-20mA)
Short Circuit
Yes
Channel Diagnostic
Yes
Power Of Indication
Yes
Channel Status
No
Channel Diagnostics(Wire Break Joint)
No
Module Diagnostics (Back Plan Comm)
Yes
Seperation Between Channel
Yes (Group Isolation)
Seperation Between Backplane
Yes
Seperation Between Channel And System Power Supply
Yes
Insulation Tested With
500 VDC
Horizontal Installation
Min 0 Degree Celcius
Horizontal Installation
Max 60 Degree Celcius
Vertical Installation
Min 0 Degree Celcius
Vertical Installation
Max 60 Degree Celcius
Field Connection
37 Pin D_Sub Connector
Power Connection
5 Pin Pheonix Plug In Connector (D-Coded)
Cable Length Max.
500 MTR. Max Of 1.0 SQMM Cable, Shielded
Address Space Per Module
32 Bytes
Dimention (W x H x D)
25 x 122 x 115
Weight
160g Approx

The Analog Input Module Is A Crucial Component Designed To Facilitate The Integration Of Analog Signals Into The Plc System It Receives Analog Signals From A Diverse Array Of External Devices Including Sensors Transmitters Gauges Variable Frequency Drives (Vfds) Thermocouples And Transducers Extra. Through These Inputs We Are Able To Optimally Control And Monitor The Vital Processes Within The Plant Environment This Product Is A 08 Channel Analog Input Module Designed With Galvanic Isolation Across Four Distinct Groups Each Comprising Four Channels.
