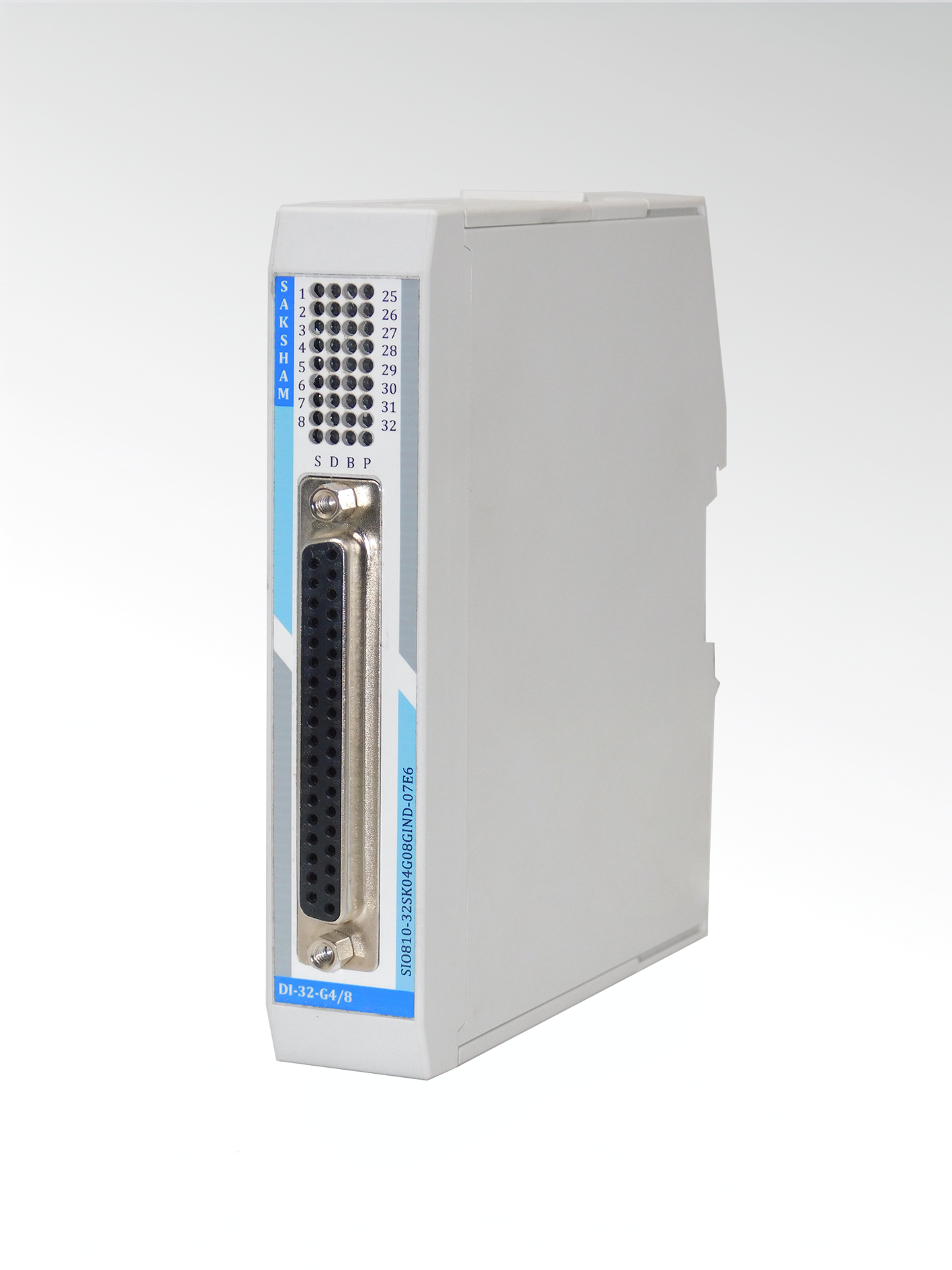

32 Channels Digital Input Module
Item No:
DI32 (S810-32SK04G08GINDCC)
32 Channels Digital Input Module
No. of Digital Inputs
32 Channels
Hardware Functional Status
From July 22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
CODESYS V3.5 SP19 and above
Mounting
Base Unit TBUS-PPPPPPPP
No. of Digital Inputs
32 Channels
Hardware Functional Status
From July 22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
CODESYS V3.5 SP19 and above
Mounting
Base Unit TBUS-PPPPPPPP
Galvanic Isolation
Yes
Galvanic Isolation Group
4
Channels In Group
8
Galvanic Isolation
Yes
Galvanic Isolation Group
4
Channels In Group
8
Digital Inputs
Yes
Counter
No
Digital Inputs
Yes
Counter
No
Power Supply From
Top Side De-Coded Plug-In Screw Terminal
Normal Supply Voltage
24 V DC
Low Supply Voltage
21.6 V DC
High Sypply Voltage
26.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
0.75 W
Power Supply From
Top Side De-Coded Plug-In Screw Terminal
Normal Supply Voltage
24 V DC
Low Supply Voltage
21.6 V DC
High Sypply Voltage
26.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
0.75 W
Automatic Encoding
No
Mechanical Coding Element
Yes
Automatic Encoding
No
Mechanical Coding Element
Yes
Number Of Digital Inputs
32
Digital Input Perameterizable
Yes
Source Sink Input
Sink/Source
Input Characteristics Curve As Per IEC-61131
Yes
Number Of Digital Inputs
32
Digital Input Perameterizable
Yes
Source Sink Input
Sink/Source
Input Characteristics Curve As Per IEC-61131
Yes
Rated Voltage
24 V DC
For 0 Signal
Up to 5 V DC
For 1 Signal
15 V DC To 28 V DC
Rated Voltage
24 V DC
For 0 Signal
Up to 5 V DC
For 1 Signal
15 V DC To 28 V DC
For "1" Signal
2 mA (max 20 mA)
For "1" Signal
2 mA (max 20 mA)
Perameterizable
Yes
From 0 To 1
Max 0.5 ms
From 1 To 0
Max 15 ms
Perameterizable
Yes
From 0 To 1
Max 0.5 ms
From 1 To 0
Max 15 ms
Power Of Indication
Yes
Channel Status
Yes
Fuse-Blown
Yes
Back-Plane Communication
Yes
Power Of Indication
Yes
Channel Status
Yes
Fuse-Blown
Yes
Back-Plane Communication
Yes
Seperation Between Channel
Yes in Group Of 8 Channel
Seperation Between Backplane
Yes
Seperation Between Channel And System Power Supply
Yes
Insulation Tested With
500 VDC
Seperation Between Channel
Yes in Group Of 8 Channel
Seperation Between Backplane
Yes
Seperation Between Channel And System Power Supply
Yes
Insulation Tested With
500 VDC
Horizontal Installation
0°C
Horizontal Installation
60°C
Vertical Installation
0°C
Vertical Installation
60°C
Horizontal Installation
0°C
Horizontal Installation
60°C
Vertical Installation
0°C
Vertical Installation
60°C
Field Connection
37-Pin D-Sub Female Connector
Power Connection
5 Pin Phoenix Plug-In Screw Connector (De-Coded)
Field Connection
37-Pin D-Sub Female Connector
Power Connection
5 Pin Phoenix Plug-In Screw Connector (De-Coded)
Cable Length Max.
500 m
Address Space Per Module
2 Bytes
Dimensions (W x H x D)
25 x 122 x 115 mm
Weight
140g Approx
Cable Length Max.
500 m
Address Space Per Module
2 Bytes
Dimensions (W x H x D)
25 x 122 x 115 mm
Weight
140g Approx
Conformal Coating
G1, G2 And G3
Conformal Coating
G1, G2 And G3
Digital inputs are key players in a variety of industrial applications, making them super important for today’s automation systems. Our digital input modules work hand-in-hand with PLCs to manage all sorts of field components effortlessly. They pick up signals from field sensors, switches, and other devices, ensuring you get accurate and timely data every time. With 32 channels divided into 4 friendly groups of 8 channels each, our digital input modules are designed for optimal performance and reliability in your industrial automation projects.
