16 Channel Analog Input FTA

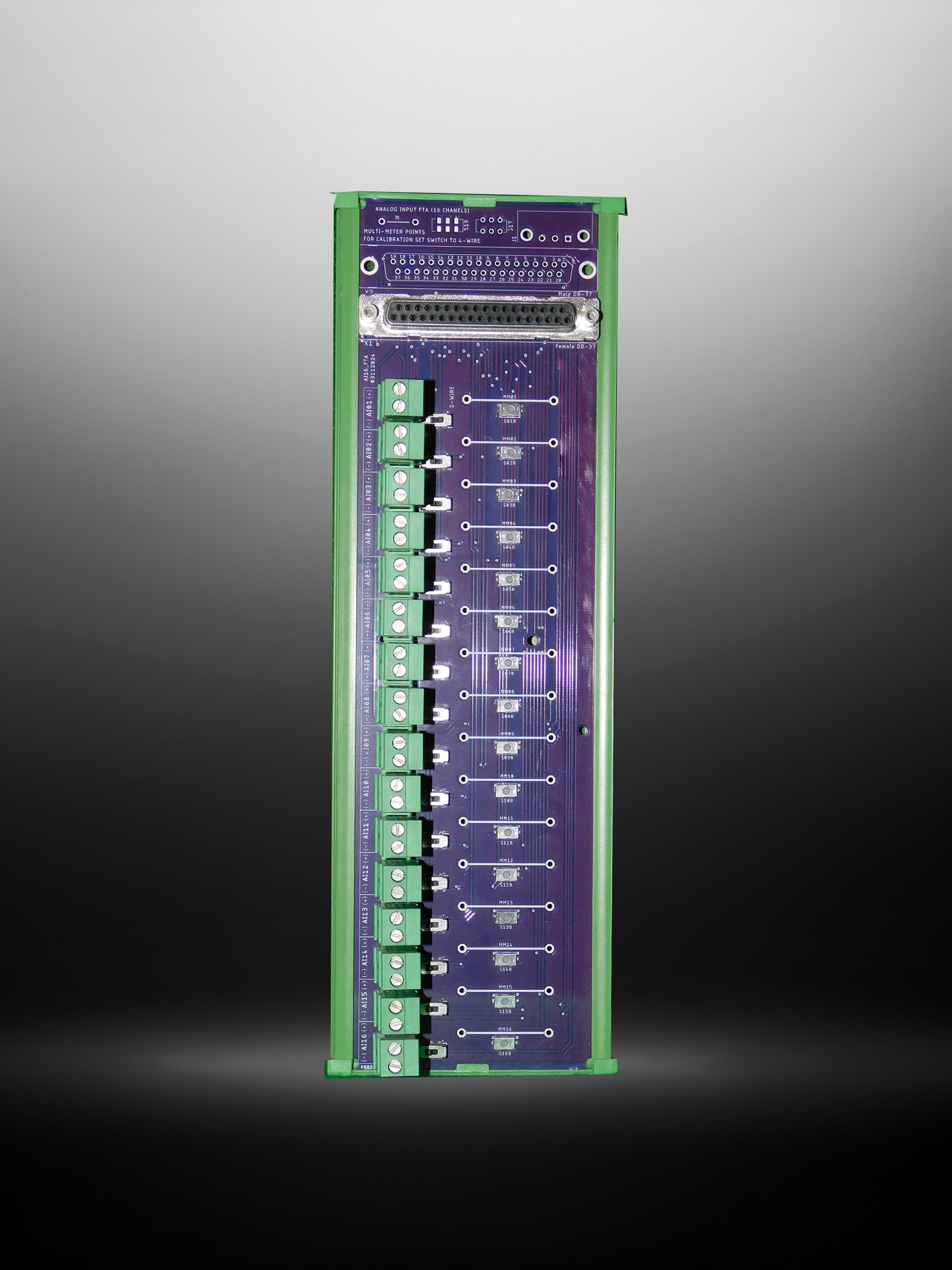

TPW Saksham AI16-FTA (SFF) Module - High-Resolution View
Product Type
FTA (Field Terminal Assambly)
Product Variant
MFF-B
No Of Channels
16
Hardware Functional Status
From Jul22
Type Of Input
2-wire/4-wire Selectable
2w/4w Selection
Individual Channel wise
Diagnostics Testing
Easy Diagnostics Without Field disconnection
Operating Voltage
24 V DC
Max Current Input
25 mA
Max From Power Supply
NA
2 Wire Transmitter
Yes (Selection By Switch)
4 Wire Transmitter
Yes (Selection By Switch)
Connection In Acc. With Standard
IEC 60603-13
Connection Method
37 Pin D Sub Connector
Number Of Connection
1
Connection Method
Double Through Plug In Screw Terminal
Number Of Connection
For 16 Channels
Conductor Cross Section Rigid
0.2 mm² ... 2.5 mm²
Conductor Cross Section Flaxible
0.2 mm² ... 1.5 mm²
Tightening Torque
0.5 Nm ... 0.6 Nm
Width
260 mm
Height
89.6 mm
Depth
70.5 mm
Color
Magenta PCB
Housing Insulation Material
PVC
Degree Of Protection
IP00
Degree Of Protection (Installation Location)
≥ IP54
Ambient Temperature
-20 °C ... 70 °C
Altitude
≤ 2000 m
Mounting Type
Din rail Mounting
Mounting Position
Any

Experience the future of panel wiring with our cutting edge field terminal assembly FTA designed with innovation in mind our FTA simplifies the connection of prefabricated cables directly to the analog input module making field connections in your plant seamless and efficient enjoy the flexibility of connecting both 2 wire and 4 wire transmitters at a single terminal with a simple switch selection what sets our FTA apart is its troubleshooting capability you can easily check field connections without disconnecting them simply by using a multimeter and a push button choose our FTA for a more efficient and trouble free operation.
