Product Type

FTA (Field Terminal Assambly)

No Of Channels

16

Hardware Functional Status

From Jul22

Operating Voltage

24V DC

Max Current Per Output

20 mA

Max Current From Main Power Supply

0.5 A

Connection In Acc With Standard

IEC 60603-13

Connection Method

37 Pin D-Sub Connector

Number Of Connection

1

Connection Method

Double Through, Plug In Screw Terminal

Number Of Connection

For 16 Channels

Conductor Cross Section Rigid

0.2 mm² ... 2.5 mm²

Conductor Cross Section Flaxible

0.2 mm² ... 1.5 mm²

Tightening Torque

0.5 Nm ... 0.6 Nm

Connection Method

Plug In Screw Terminal

Number Of Connection

3 (+ve, -ve and GND)

Conductor Cross Section Rigid

0.2 mm² ... 2.5 mm²

Conductor Cross Section Flaxible

0.2 mm² ... 2.5 mm²

Tightening Torque

0.5 Nm ... 0.6 Nm

Width

260 mm

Height

89.6 mm

Depth

70.5 mm

Color

Orange PCB

Housing Insulation Material

PVC

Degree Of Protection

IP00

Degree Of Protection (Installation Location)

≥ IP54

Ambient Temperature

-20 °C ... 70 °C

Altitude

≤ 2000 m

Mounting Type

Din rail Mounting

Mounting Position

Any

Experience the future of panel wiring with our cutting edge field terminal assembly FTA designed with innovation in mind our FTA simplifies the connection of prefabricated cables directly to the analog output module making field connections in your plant seamless and efficient what sets our FTA apart is its troubleshooting capability you can easily check field connections without disconnecting them simply by using a multimeter and a push button choose our FTA for a more efficient and trouble free operation.

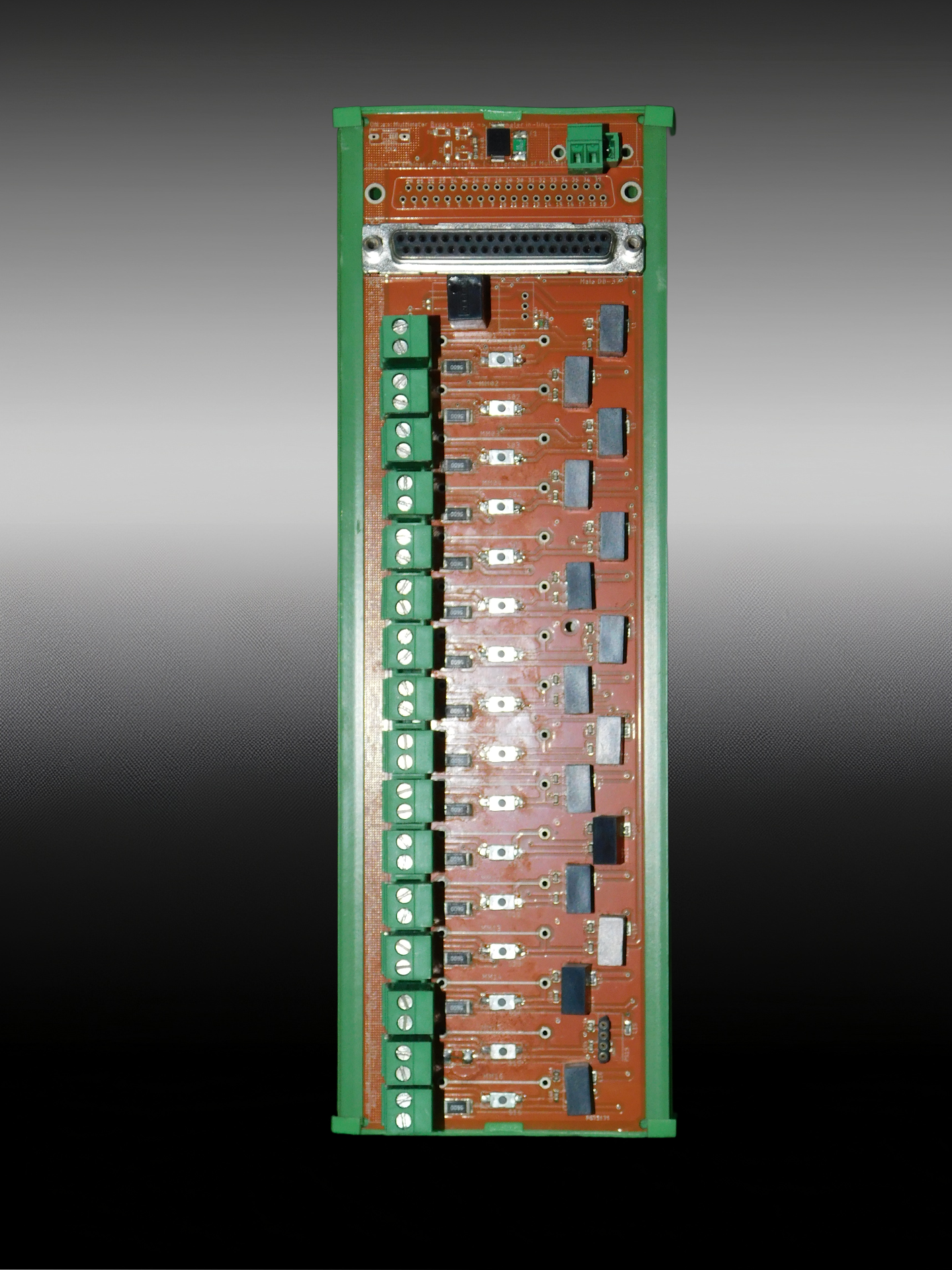

16 Channel Analog Output FTA

General Information Product Type FTA (Field Terminal Assambly) No Of Channels 16 Hardware Functional Status From Jul22

Electrical Properties Operating Voltage 24V DC Max Current Per Output 20 mA Max Current From Main Power Supply 0.5 A

Connection Data (Control Level) Connection In Acc With Standard IEC 60603-13 Connection Method 37 Pin D-Sub Connector Number Of Connection 1

Connection Data (Field Level) Connection Method Double Through, Plug In Screw Terminal Number Of Connection For 16 Channels Conductor Cross Section Rigid 0.2 mm² ... 2.5 mm² Conductor Cross Section Flaxible 0.2 mm² ... 1.5 mm² Tightening Torque 0.5 Nm ... 0.6 Nm

Connection Data (Supply Level) Connection Method Plug In Screw Terminal Number Of Connection 3 (+ve, -ve and GND) Conductor Cross Section Rigid 0.2 mm² ... 2.5 mm² Conductor Cross Section Flaxible 0.2 mm² ... 2.5 mm² Tightening Torque 0.5 Nm ... 0.6 Nm

Dimension Width 260 mm Height 89.6 mm Depth 70.5 mm

Material Specification Color Orange PCB Housing Insulation Material PVC

Ambient Condition Degree Of Protection IP00 Degree Of Protection (Installation Location) ≥ IP54 Ambient Temperature -20 °C ... 70 °C Altitude ≤ 2000 m

Mounting Mounting Type Din rail Mounting Mounting Position Any
