No Of Analog Outputs

16 Channels

Type Of Analog Output

0/4-20 mA

Hardware Functional Status

From July 22

Firmware Version

1.00.001

Firmware Update Possible

Yes

Engineering Software

CODESYS V3.5 SP19 and above

Mounting

Base Unit TBUS-PPPPPPPP

Galvanic Isolation

Yes

Galvanic Isolation Group

1

Channels In Group

16

Input Short-Circuit Protection

Yes, For Each Channel (For mA Channel only)

Input Over-Current Protection

Yes (40 mA)

Power Supply From

Top Side De-Coded Plug-In Screw Terminal

Normal Supply Voltage

24 V DC

Low Supply Voltage

21.6 V DC

High Supply Voltage

26.5

Reverse Polarity Protection

Yes

Input Current

0.5 A

Current Per Channel Permissible

25 mA

Transmitter Power

Yes

Power Loss

Less than 1 W

Load Resistance

370 Ω, Max

Output Range

0-20 mA

Output Range

4-20 mA

Range

Scalable

Resistive Load

0.5 ms

Capacitive Load

1 ms

Inductive Load

1 ms

Two Wire Connection, Curent O/P

Yes

Perameterization in Run

Yes

Calibration in Run

Yes

Automatic Encoding

No

Mechanical Coding Element

Yes

Linearity Error

0.1% (Input Range)

Operational Error

0.5% (Input Range)

Basic Error

0.3% (Input Range)

Substitude Value Can Applied

Yes

Crosstalk Between Outputs

-50 dB

Diagnostic Alarm

Yes

Limit Alarm

Yes

Function Of Diagnostic

Available

Diagnostic Alarm

Yes

Module Fuse Blown Indication

Yes

Wire-Break

No

Short-Circuit

No

Channel Diagnostics

No

Power Of Indication

Yes

Channel Status

No

Channel Diagnostics (Wire-Break)

No

Module Diagnostics (Back-Plane Comm)

Yes

Seperation Between Channel

Yes (Groups Isolation)

Seperation Between Backplane

Yes

Seperation Between Channel and System Power Supply

Yes

Insulation Tested With

370 V DC

Horizontal Installation

0°C

Horizontal Installation

60°C

Vertical Installation

0°C

Vertical Installation

60°C

Field Connection

37-Pin D-Sub Female Connector

Power Connection

5 Pin Phoenix Plug-In Screw Connector (De-Coded)

Cable Length Max.

500 m, 1.0 mm² shielded cable

Address Space Per Module

32 Bytes

Dimensions (W x H x D)

25 x 122 x 115 mm

Weight

100g Approx

Analog output modules are vital in PLC systems, enabling precise control and regulation of devices and machinery. Selecting the right module depends on application needs, signal integrity, and integration complexity. When properly implemented, they enhance system efficiency, reliability, and productivity. This 16-channel analog output module offers superior performance with complete galvanic isolation across all channels, ensuring outstanding noise immunity and stable operation even in demanding industrial environments, making it ideal for precision control applications.

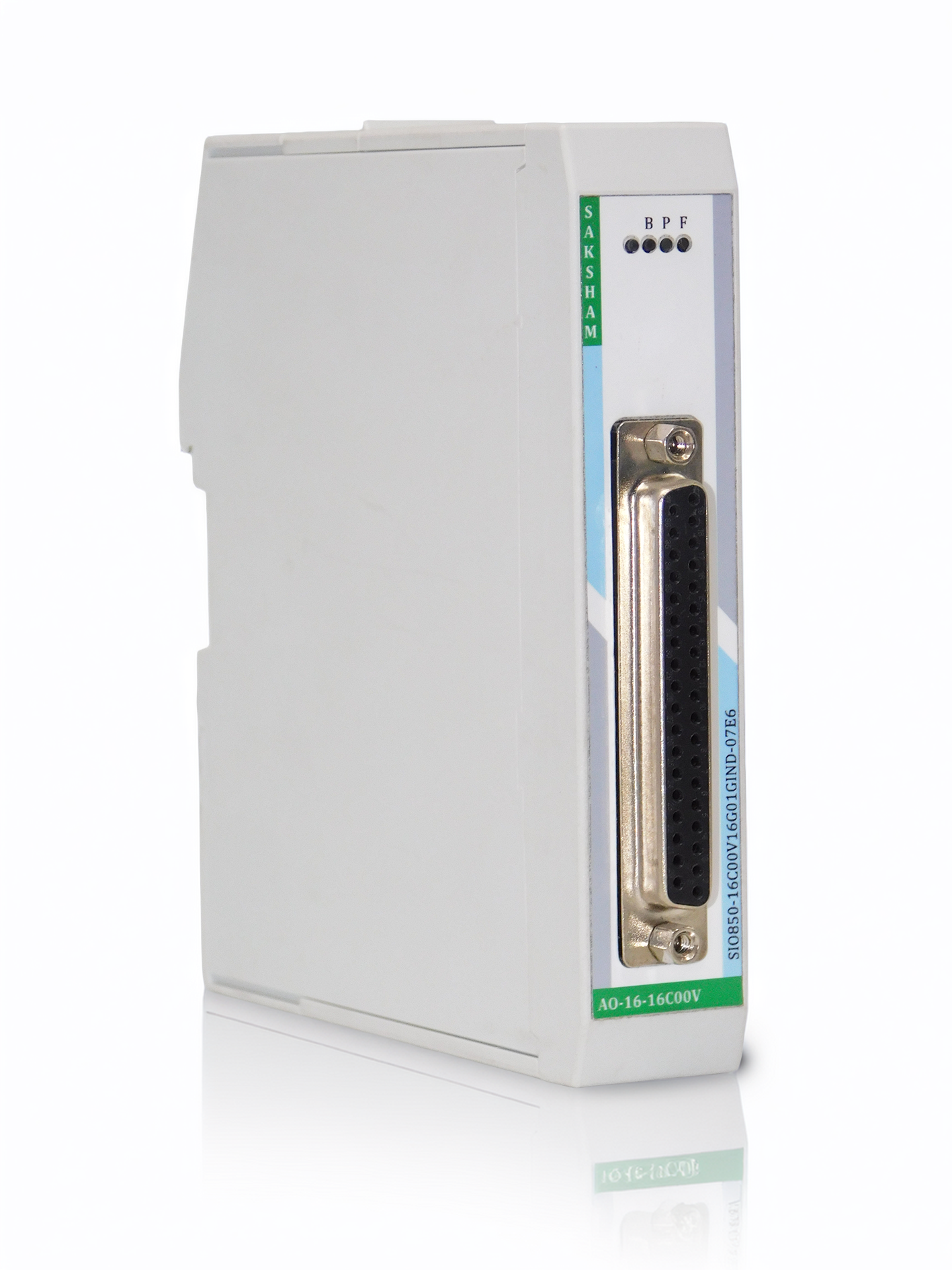

16 Channels Analog Output Module

No Of Analog Outputs

16 Channels

Type Of Analog Output

0/4-20 mA

Hardware Functional Status

From July 22

Firmware Version

1.00.001

Firmware Update Possible

Yes

Engineering Software

CODESYS V3.5 SP19 and above

Mounting

Base Unit TBUS-PPPPPPPP

Galvanic Isolation

Yes

Galvanic Isolation Group

1

Channels In Group

16

Input Short-Circuit Protection

Yes, For Each Channel (For mA Channel only)

Input Over-Current Protection

Yes (40 mA)

Output Range

0-20 mA

Output Range

4-20 mA

Range

Scalable

Resistive Load

0.5 ms

Capacitive Load

1 ms

Inductive Load

1 ms

Two Wire Connection, Curent O/P

Yes

Perameterization in Run

Yes

Calibration in Run

Yes

Automatic Encoding

No

Mechanical Coding Element

Yes

Linearity Error

0.1% (Input Range)

Operational Error

0.5% (Input Range)

Basic Error

0.3% (Input Range)

Substitude Value Can Applied

Yes

Crosstalk Between Outputs

-50 dB

Diagnostic Alarm

Yes

Limit Alarm

Yes

Function Of Diagnostic

Available

Diagnostic Alarm

Yes

Module Fuse Blown Indication

Yes

Wire-Break

No

Short-Circuit

No

Channel Diagnostics

No

Power Of Indication

Yes

Channel Status

No

Channel Diagnostics (Wire-Break)

No

Module Diagnostics (Back-Plane Comm)

Yes

Seperation Between Channel

Yes (Groups Isolation)

Seperation Between Backplane

Yes

Seperation Between Channel and System Power Supply

Yes

Insulation Tested With

370 V DC

Horizontal Installation

0°C

Horizontal Installation

60°C

Vertical Installation

0°C

Vertical Installation

60°C

Field Connection

37-Pin D-Sub Female Connector

Power Connection

5 Pin Phoenix Plug-In Screw Connector (De-Coded)

Cable Length Max.

500 m, 1.0 mm² shielded cable

Address Space Per Module

32 Bytes

Dimensions (W x H x D)

25 x 122 x 115 mm

Weight

100g Approx

+91 9455730147

|

+91 9935837444

16 Channels Analog Output Module

General Information No Of Analog Outputs 16 Channels Type Of Analog Output 0/4-20 mA Hardware Functional Status From July 22 Firmware Version 1.00.001 Firmware Update Possible Yes Engineering Software CODESYS V3.5 SP19 and above Mounting Base Unit TBUS-PPPPPPPP

Isolation Galvanic Isolation Yes Galvanic Isolation Group 1 Channels In Group 16 Input Short-Circuit Protection Yes, For Each Channel (For mA Channel only) Input Over-Current Protection Yes (40 mA)

Range Output Range 0-20 mA Output Range 4-20 mA Range Scalable

Oscillation Time Resistive Load 0.5 ms Capacitive Load 1 ms Inductive Load 1 ms

Connection Of Actuator Two Wire Connection, Curent O/P Yes

Configuration In Running Perameterization in Run Yes Calibration in Run Yes

Hardware Configuration Automatic Encoding No Mechanical Coding Element Yes

Error Linearity Error 0.1% (Input Range) Operational Error 0.5% (Input Range) Basic Error 0.3% (Input Range) Substitude Value Can Applied Yes Crosstalk Between Outputs -50 dB

Alarm Diagnostic Alarm Yes Limit Alarm Yes

Diagnostic Function Of Diagnostic Available Diagnostic Alarm Yes Module Fuse Blown Indication Yes

Diagnostic Messages Wire-Break No Short-Circuit No Channel Diagnostics No

LED Power Of Indication Yes Channel Status No Channel Diagnostics (Wire-Break) No Module Diagnostics (Back-Plane Comm) Yes

Potential Sepration Seperation Between Channel Yes (Groups Isolation) Seperation Between Backplane Yes Seperation Between Channel and System Power Supply Yes Insulation Tested With 370 V DC

Ambient Condition Horizontal Installation 0°C Horizontal Installation 60°C Vertical Installation 0°C Vertical Installation 60°C

Connection Field Connection 37-Pin D-Sub Female Connector Power Connection 5 Pin Phoenix Plug-In Screw Connector (De-Coded)

Other Information Cable Length Max. 500 m, 1.0 mm² shielded cable Address Space Per Module 32 Bytes Dimensions (W x H x D) 25 x 122 x 115 mm Weight 100g Approx
