Product Type

DI FTA (Field Terminal Assambly)

No Of Channels

32

Hardware Functional Status

From Jul22

Operating Voltage

≤ 30 V DC

Current Per Branch

1 A

Current (Terminal Block)

5 A

Nominal Input Voltage

24 V Dc

Input Voltage Range

19.2 V DC ... 26.4 V DC

Typical Input Current At

20 mA

Typical Response Time

8 ms

Typical Release Time

10 ms

Protective Circuit

Freewheeling Diode

Contact Switching Type

1 Changeover Contact

Contact Material

AgNi

Maximum Switching Voltage

250 V AC/DC

Minimum Switching Voltage

12 V

Limiting Continues Current

3.15 ( Limited Fuse)

Minimum Switching Current

10 mA AT 12 V

Error Detection Line Break Short Circuit

No

Connection In Acc. With Standard

IEC 60603-13

Connection Method

37 Pin D-Sub Connector

Number Of Connection

1

Connection Method

Double Through, Plug In Screw Terminal

Number Of Connection

For 32 Channels

Conductor Cross Section Rigid

0.2 mm² ... 4 mm²

Conductor Cross Section Flaxible

0.2 mm² ... 2.5 mm²

Tightening Torque

0.5 Nm ... 0.6 Nm

Connection Method

Plug In Screw Terminal

Number Of Connection

4

Conductor Cross Section Rigid

0.2 mm² ... 2.5 mm²

Conductor Cross Section Flaxible

0.2 mm² ... 2.5 mm²

Tightening Torque

0.5 Nm ... 0.6 Nm

Width

450 Mm

Height

120 Mm

Depth

70.5 mm

Color

Green

Housing Insulation Material

PVC

Degree Of Protection

IP00

Degree Of Protection (Installation Location)

≥ IP54

Ambient Temperature

-20 °C ... 70 °C

Altitude

≤ 2000 m

Mounting Type

Din Rail Mounting

Mounting Position

Any

Introducing A Revolution In Panel Wiring With Our Highly Advanced Field Terminal Assembly Fta Engineered For Superior Functionality Our Fta Enables Direct Connection Of Prefabricated Cables To The Digital Input Module Optimizing Field Connections With Unparalleled Efficiency In Your Facility This Fta Module Is Equipped With An Interposing Relay On All Channels Ensuring Complete Isolation From Field Devices To Enhance System Integrity And Safety.

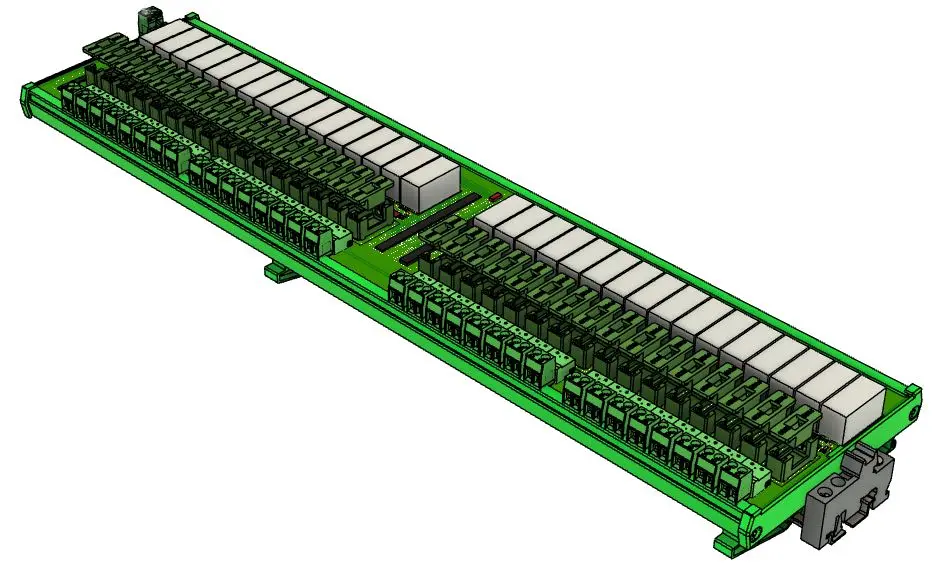

32 Channel Digital Input FTA

General Information Product Type DI FTA (Field Terminal Assambly) No Of Channels 32 Hardware Functional Status From Jul22

Electrical Properties Operating Voltage ≤ 30 V DC Current Per Branch 1 A Current (Terminal Block) 5 A

Input Data Nominal Input Voltage 24 V Dc Input Voltage Range 19.2 V DC ... 26.4 V DC Typical Input Current At 20 mA Typical Response Time 8 ms Typical Release Time 10 ms Protective Circuit Freewheeling Diode

Output Data Contact Switching Type 1 Changeover Contact Contact Material AgNi Maximum Switching Voltage 250 V AC/DC Minimum Switching Voltage 12 V Limiting Continues Current 3.15 ( Limited Fuse) Minimum Switching Current 10 mA AT 12 V Error Detection Line Break Short Circuit No

Connection Data (Control Level) Connection In Acc. With Standard IEC 60603-13 Connection Method 37 Pin D-Sub Connector Number Of Connection 1

Connection Data (Field Level) Connection Method Double Through, Plug In Screw Terminal Number Of Connection For 32 Channels Conductor Cross Section Rigid 0.2 mm² ... 4 mm² Conductor Cross Section Flaxible 0.2 mm² ... 2.5 mm² Tightening Torque 0.5 Nm ... 0.6 Nm

Connection Data (Supply Level) Connection Method Plug In Screw Terminal Number Of Connection 4 Conductor Cross Section Rigid 0.2 mm² ... 2.5 mm² Conductor Cross Section Flaxible 0.2 mm² ... 2.5 mm² Tightening Torque 0.5 Nm ... 0.6 Nm

Dimension Width 450 Mm Height 120 Mm Depth 70.5 mm

Material Specification Color Green Housing Insulation Material PVC

Ambient Condition Degree Of Protection IP00 Degree Of Protection (Installation Location) ≥ IP54 Ambient Temperature -20 °C ... 70 °C Altitude ≤ 2000 m

Mounting Mounting Type Din Rail Mounting Mounting Position Any
