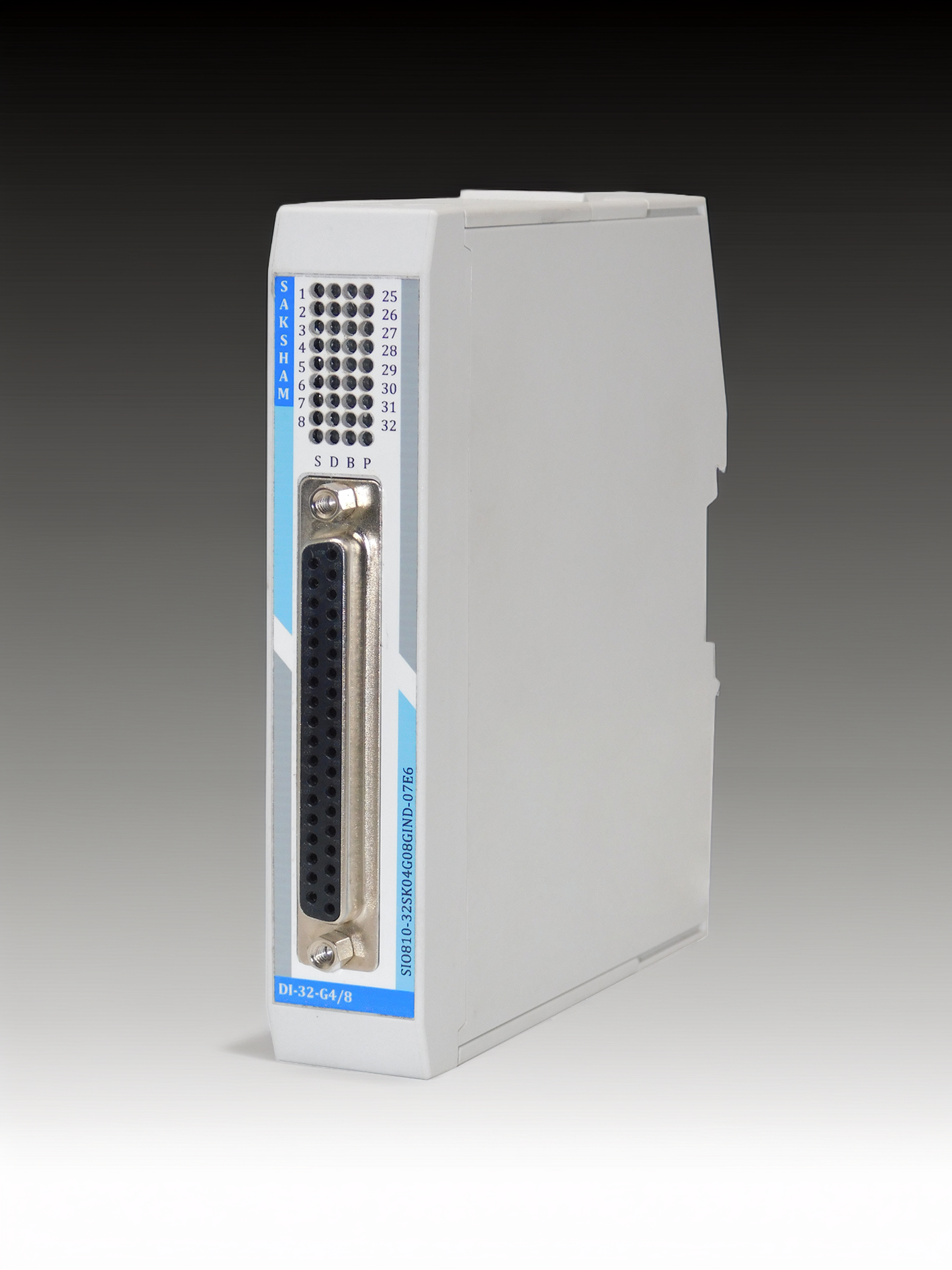

16 Channels Digital Input Module
Item No:
S710-16SK02G08GIND
16 Channels Digital Input Module
No. of Digital Input
16 Channels
Hardware Functional Status
From July 22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
CODESYS V3.5 SP19 and above
Mounting
Base Unit TBUS-PPPPPPPP
No. of Digital Input
16 Channels
Hardware Functional Status
From July 22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
CODESYS V3.5 SP19 and above
Mounting
Base Unit TBUS-PPPPPPPP
Galvanic Isolation
Yes
Galvanic Isolation Group
02
Channels In Group
8
Galvanic Isolation
Yes
Galvanic Isolation Group
02
Channels In Group
8
Digital Inputs
Yes
Counter
No
Digital Inputs
Yes
Counter
No
Power Supply From
Top Side De-Coded Plug-In Screw Terminal
Normal Supply Voltage
24 V DC
Low Supply Voltage
18.5 V DC
High Sypply Voltage
28.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
less than 1 w
Power Supply From
Top Side De-Coded Plug-In Screw Terminal
Normal Supply Voltage
24 V DC
Low Supply Voltage
18.5 V DC
High Sypply Voltage
28.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
less than 1 w
Automatic Encoding
No
Mechanical Coding Element
Yes
Automatic Encoding
No
Mechanical Coding Element
Yes
Number Of Digital Inputs
32
Digital Input Perameterizable
Yes
Source Sink Input
Sink / Source
Input Characteristics Curve As Per Iec 61131
Yes
Number Of Digital Inputs
32
Digital Input Perameterizable
Yes
Source Sink Input
Sink / Source
Input Characteristics Curve As Per Iec 61131
Yes
Rated Voltage
24 V DC
For 0 Signal
Upto 5 V DC
For 1 Signal
15 V DC to 28 V DC
Rated Voltage
24 V DC
For 0 Signal
Upto 5 V DC
For 1 Signal
15 V DC to 28 V DC
For "1" Signal
2 mA (max 20 mA)
For "1" Signal
2 mA (max 20 mA)
Perameterizable
Yes
From 0 To 1
Max 0.5 ms
From 1 To 0
Max 15 ms
Perameterizable
Yes
From 0 To 1
Max 0.5 ms
From 1 To 0
Max 15 ms
Power Of Indication
Yes
Channels Status
Yes
Module Fuse Blown
Yes
Module Diagnostics (Back-Plane comm)
Yes
Power Of Indication
Yes
Channels Status
Yes
Module Fuse Blown
Yes
Module Diagnostics (Back-Plane comm)
Yes
Seperation Between Channels
Yes
Seperation Between Backplane
Yes
Seperation Between Channels and System Power Supply
Yes
Insulation Tested With
500 V DC
Seperation Between Channels
Yes
Seperation Between Backplane
Yes
Seperation Between Channels and System Power Supply
Yes
Insulation Tested With
500 V DC
Horizontal Installation
0°C
Horizontal Installation
60°C
Vertical Installation
0°C
Vertical Installation
60°C
Horizontal Installation
0°C
Horizontal Installation
60°C
Vertical Installation
0°C
Vertical Installation
60°C
Field Connection
37-Pin D-Sub Female Connector
Power Connection
5 Pin Phoenix Plug-In Screw Connector (De-Coded)
Field Connection
37-Pin D-Sub Female Connector
Power Connection
5 Pin Phoenix Plug-In Screw Connector (De-Coded)
Cable Length Max.
1000 m
Address Space Per Module
4 Bytes
Dimensions (W x H x D)
25 x 122 x 115 mm
Weight
140g Approx
Cable Length Max.
1000 m
Address Space Per Module
4 Bytes
Dimensions (W x H x D)
25 x 122 x 115 mm
Weight
140g Approx
Digital Inputs are integral to a diverse range of industrial applications establishing them as crucial components of advanced automation systems digital input modules are deployed in PLC to effectively manage various field components. These digital inputs are acquired from field sensors switches and other devices ensuring accurate and timely data acquisition. Our digital input modules feature 16 channels galvanically isolated into 2 distinct groups of 8 channels each providing optimal performance and reliability for industrial automation applications.
