16 Channel Digital Output Module

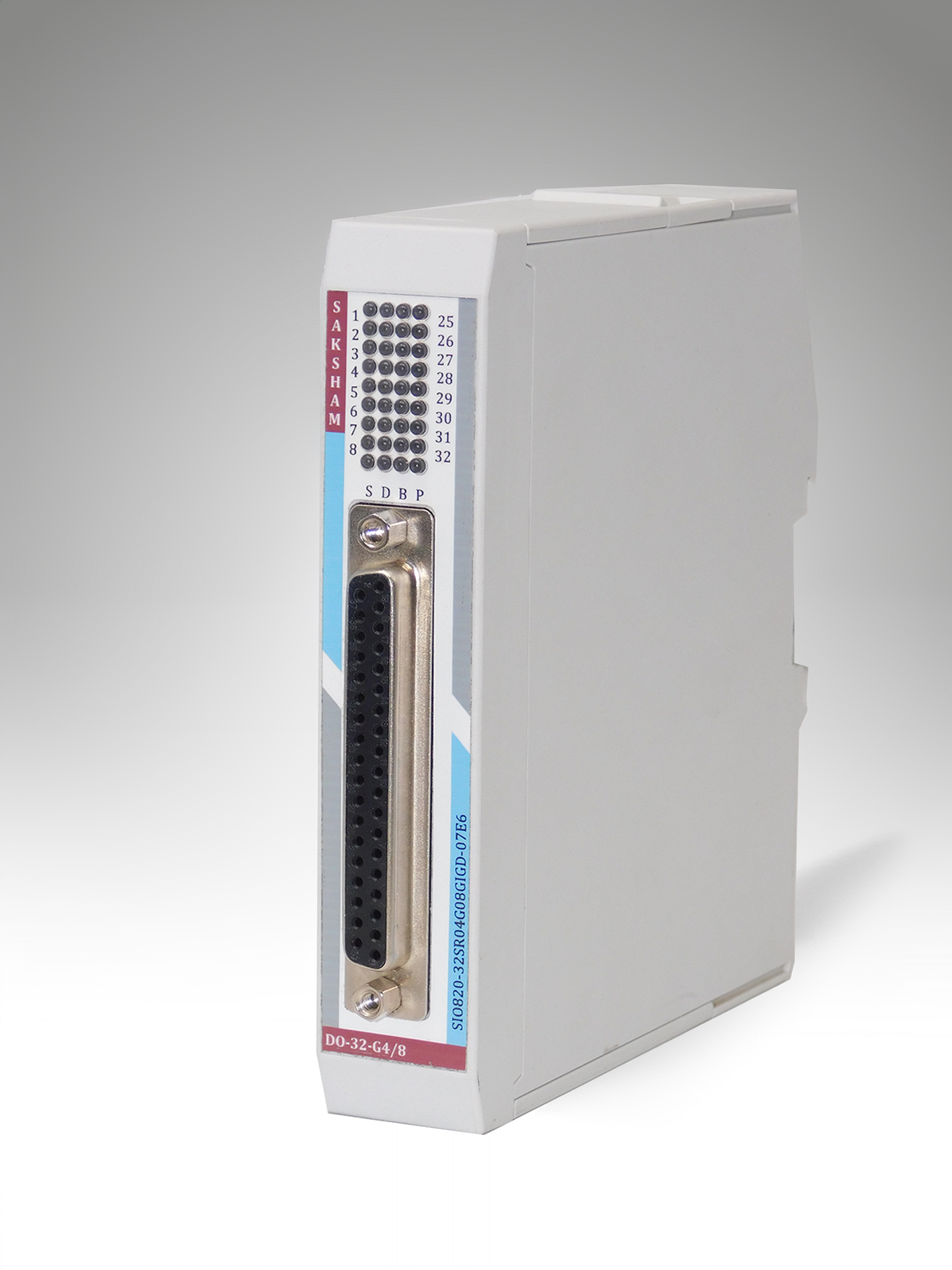

TPW Industries Saksham Series PLC Product - Large View
No. of Digital Output
16 Channels
Hardware Functional Status
From Jul22
Firmware Version
1.00.001
Firmware Update Possible
Yes
Engineering Software
Codesys V3.5 Sp 19 And Above
Mounting
Base Unit Tbus Pppppppp
Galvanic Isolation
Yes
Galvanic Isolation Group
01
Channel In Group
16
DO
Yes
DO With Energy Saving Function
No
PWM
No
Power Supply From
Top Side De Coded Plug In Screw Terminal
Normal Supply Voltage
24 Vdc
Low Supply Voltage
18.5 Vdc
High Sypply Voltage
28.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
0.75 W
Automatic Encoding
No
Mechanical Coding Element
Yes
Number Of Digital Inputs
16 Channel
Type Of Digital Output
Source Output
Current Sinking
No
Current Sourcing
Yes
Digital Input Perameterizable
Yes
Short Circuit Protection
Yes
Response Threadshold
1A
Open Circuit Detection
Yes
Limitation Of Inductive Shutdown Voltage
Type L+
Controlling A Digital Input
Yes
Switching Capacity To Resistive Load
0.5 A
Switching Capacity To Inductive Load
5 W
Lower Limit
45 Ω
Upper Limit
12 KΩ
For "1" Signal
0.5 AMP
For "1" Signal
0.1 mA
From 0 To 1
Max 50 µs
From 1 To 0
Max 100 µs
Uprating
No
Redundant Control Of Load
Yes
Resistive Load
100 Hz
Inductive Load
2 Hz
Lamp Load
10 Hz
Per Channel
0.5 A
Per Module
08 A
30 Degree Celcius
8 A
40 Degree Celcius
8 A
50 Degree Celcius
8 A
60 Degree Celcius
4 A
30 Degree Celcius
8 A
40 Degree Celcius
8 A
50 Degree Celcius
4 A
Function Of Diagnostic
Yes
Diagnostic Alarm
Available
Diagnostic Info Readable
Yes
Supply Voltage Monitoring
Yes
Wire-Break
Yes
Short Circuit to 0V
Yes
Short Circuit to 24V
Yes
Group Error
Yes
Power Of Indication
Yes
Channel Status
Yes
Channel Diagnostics
No
Module Diagnostics
Yes
Seperation Between Channel
Yes
Seperation Between Backplane
Yes
Seperation Between Channel And System Power Supply
Yes
Insulation Tested With
500 VDC
Horizontal Installation
Min. 0 Degree Celcius
Horizontal Installation
Max. 60 Degree Celcius
Vertical Installation
Min. 0 Degree Celcius
Vertical Installation
Max. 60 Degree Celcius
Field Connection
37 Pin D_Sub Connector
Power Connection
5 Pin Pheonix Plug In Connector (D-Coded)
Cable Length Max.
1000 MTR.
Address Space Per Module
32 Bytes
Dimention (W x H x D)
25 x 122 x 115
Weight
145g Approx

The Digital Output Module Is An Essential Component Of Any Plc System, Transforming Digital Input Signals Into Crucial Digital Output Signals. These Outputs Are Integral For Controlling Actuators, Motors, Lights, Alarms, And Other Devices That Require External Control, All Guided By Sophisticated Logic Sequences Stored In The Plc's Memory. By Choosing The Right Digital Output Module, You Ensure Not Only Maximum Performance And Accuracy But Also Unmatched Stability And Safety Throughout Your Industrial Automation Projects. Our Digital Output Modules, Featuring 16 Channels Galvanically Isolated Into 1 Distinct Groups Of 16 Channels Each, Provide Unparalleled Reliability And Efficiency, Making Them The Ideal Choice For Your Automation Needs.
