Interface Module Model

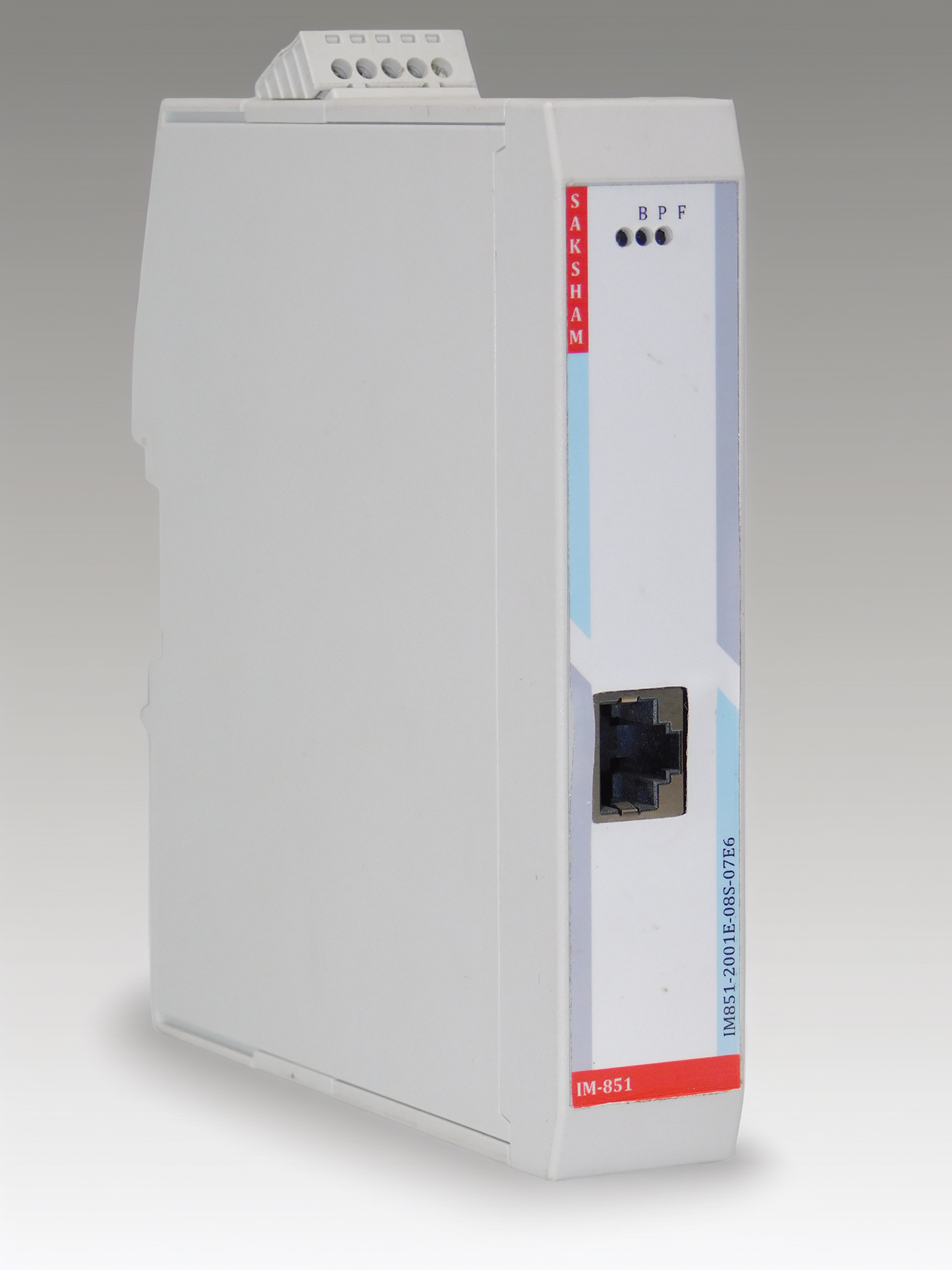

TPW Saksham IM Module - Large View
Hardware Version
EM08IM01
Firmware Version
1.00.001
Hardware Functional Status
From Jul22
Firmware Update Possible
Yes
Engineering Software
Codesys V3 5 Sp 19 And Above
Mounting
Base Unit Tbus Pppppppp
Power Supply From
Top Side De Coded Plug In Screw Terminal
Normal Supply Voltage
24 Vdc
Low Supply Voltage
18.5 Vdc
High Sypply Voltage
28.5
Reverse Polarity Protection
Yes
Maximum Current
100 mA
Power Loss
0.75 mA
No Of Module Per Pack (Any Type)
8
No Of Modnet interface
1
No Of Interface Port
1
Rj 45 Ethernet
Yes 1 Integrated Rj 45 Ports
RJ-45 Ethernet
Yes
Speed
100 Mbps Full Duplex
Transmisson Method
Modnet
Auto Negotiation
Yes
Auto Crossing
Yes
Modbus Ethernet IP
Yes
Power On Indication
Yes
Run
Yes
Tx/Rx Link
Sigma Delta Integrating
Seperation Between Chennal
Yes
Seperation Between Backplane
Yes
Seperation Between Channel And System Power Supply
Yes
Insulation Tested With
500 Vdc
Horizontal Installation
Min 0 Degree Celcius
Horizontal Installation
Max 60 Degree Celcius
Vertical Installation
Min 0 Degree Celcius
Vertical Installation
Max 60 Degree Celcius
Dimention (W x H x D)
25 x 122 x 115
Wieght
146 g Approx

Our Interface Module Im Is Designed With Advanced Technology To Provide Optimal Functionality This Module Facilitates A Reliable Connection Between Our Input Modules And The Siemens S7 1500 Cpu Through This Im Users Can Connect Both Analog And Digital Inputs Ensuring Efficient Data Transmission To The Siemens S7 1500 Cpu For Enhanced Operational Performance Our Im Connected To Io Modules Via A T Bus You Can Easily Replace Any Module While In Operation Providing Unmatched Flexibility And Efficiency In Your System
